Fischer FWA Metric Bolt Anchor Box

Fischer FWA Metric Bolt Anchor Box

66,00 lei
73,00 lei 66,00 lei
Sale Sold out
Tax included. Shipping calculated at checkout.
Box

715925

View full details

Descripción

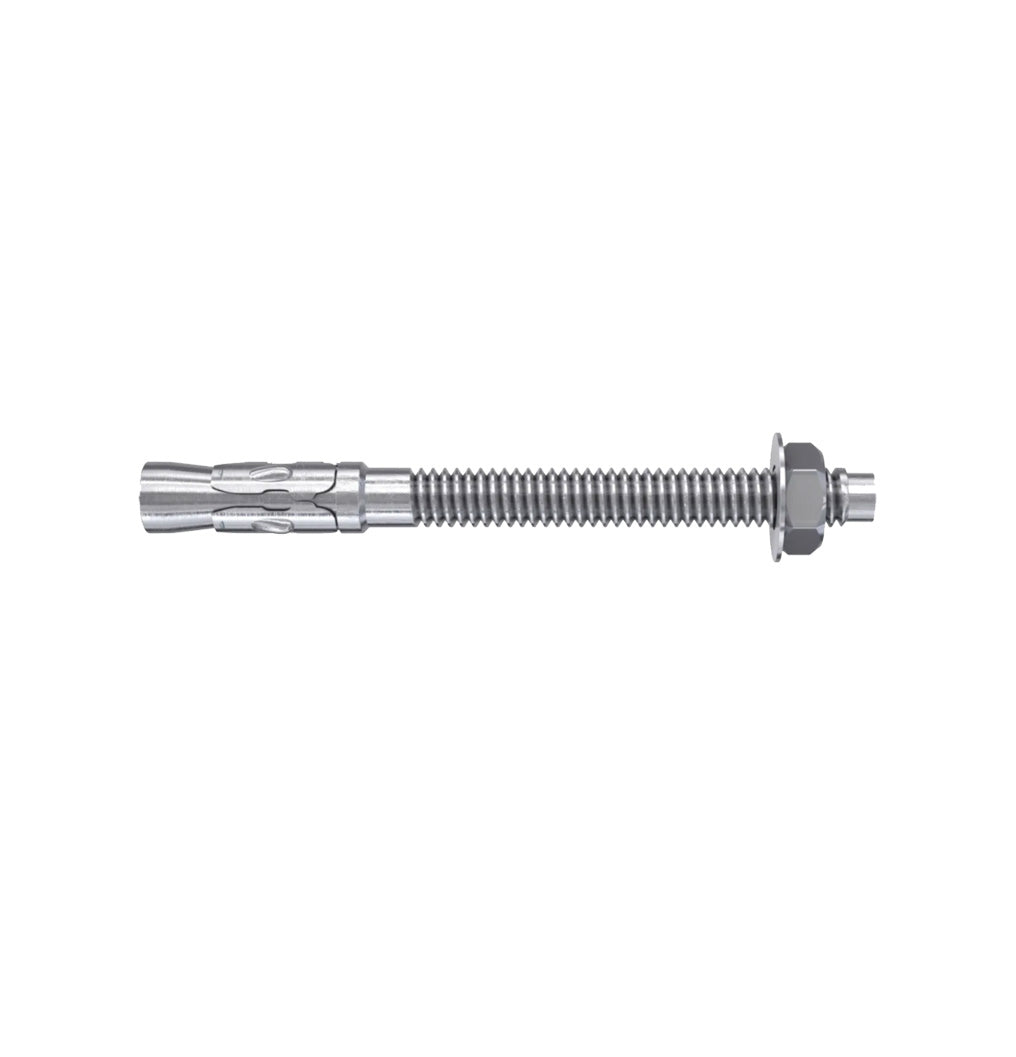

The Fischer FWA metric is a wedge expansion bolt anchor, designed for fastenings in compressed concrete without the need for ETA approval, aimed at medium and heavy-load applications. Its hammer and torque expansion system allows for quick and secure installation in metal and auxiliary structures.

FEATURES

  • Wedge anchor (cone expansion) type bolt anchor
  • Made of galvanized steel
  • Through-hole or pre-positioned installation
  • Expansion by tightening the nut (internal cone)
  • Impact zone that protects the thread during installation
  • Option of two anchoring depths (standard and reduced) to adapt load and assembly speed
  • Economical solution for compressed concrete without specific structural certification

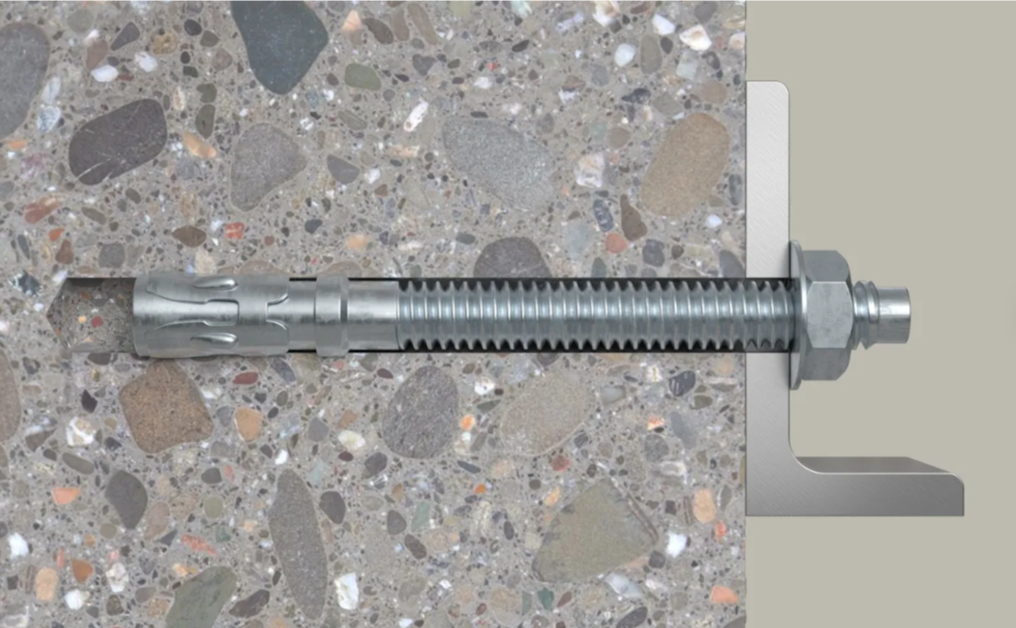

  • Main advantages: The standard FWA galvanized steel bolt anchor offers optimal performance with a very wide range. The long threaded section allows for through-hole installation using a nut and locknut.
  • Main applications: for fixing heavy loads in concrete.
  • Technology: the smooth impact zone on the outside of the bolt to prevent damage to the thread during initial hammer-driven insertion into the drill hole

SPECIFICATIONS

Size Diameter Length Box
8 x 65 8 65 mm 50 pcs.
8 x 80 8 80 mm 50 pcs.
8 x 95 8 95 mm 50 pcs.
10 x 80 10 80 mm 50 pcs.
10 x 95 10 95 mm 50 pcs.
10 x 115 10 115 mm 25 pcs.
12 x 100 12 100 mm 25 pcs.
12 x 120 12 120 mm 25 pcs.
12 x 150 12 150 mm 25 pcs.
