Descripción
The job-ready combination laser GCL 2-50 G Professional makes alignment and transfer tasks much easier. The durable design includes a rubber casing to better protect the concave lenses and help you stay focused on the task; In addition, it has IP 64 protection against dust and splashes of water.
CHARACTERISTICS
- The on/off switch and one-button keypad make it easy to use. To get started right away, the GCL's laser receiver mode is always on.
- Highly visible green laser lines and green plumb points offer improved visibility in brighter environments.
- Quick and safe assembly thanks to the RM 10 Professional rotating support with very powerful magnets. The RM 10 Professional allows precise placement of laser lines around plumb points.

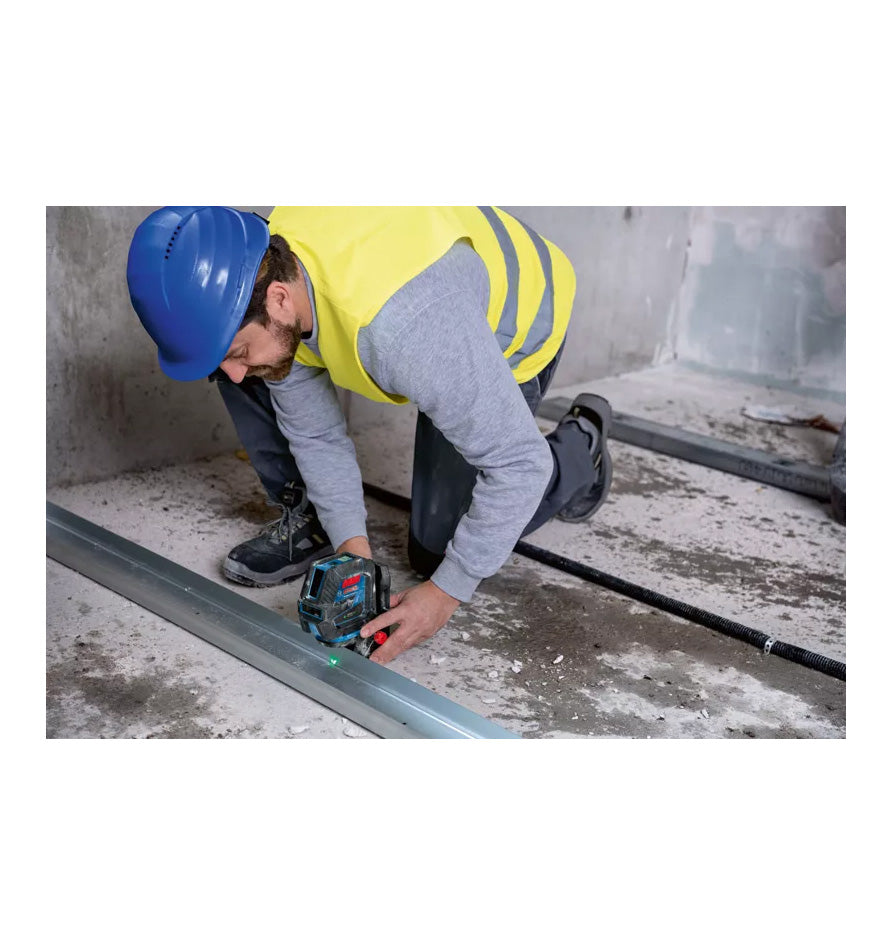

- The rugged GCL 2-50 G Professional is ideal for numerous applications, including creating drywall structures, installing sockets and doors, and transmitting points for easy assembly.
- The GCL 2-50 G Professional offers lines with a range of up to 15 m (points: up to 10 m), expandable to 50 m with the optional LR 7 Professional receiver.
- The RM 10 Professional is compatible with the optional DK 10 Professional ceiling clip for ceiling applications or precise height adjustments.
SPECIFICATIONS
Operating temperature | -10 – 45°C |
Storage temperature | -20 – 70°C |
laser class | 2 |
Scope* | up to 15m |
Range with receiver* | up to 50m |
Leveling accuracy* | ± 0.3 mm/m* (*with variations depending on conditions of use) |
Working area Laser spot, max.* | 10m |
Self-leveling interval | ±4° |
Stabilization time | 4s |
Protection against dust and splashes of water | IP64 |
Power supply | 4 x 1.5-V-LR6 (AA) |
tripod thread | 1/4" |
Weight, approx.** | 0.58kg |
Color Laser Line | green |
Color of plumb points | green |
Projection | 2 lines / 2 points |
Plumb Point Accuracy*** | ± 0.7 mm/m* (*with variations depending on conditions of use) |
Compatible laser receivers | LR 7 |
INCLUDES
- Semi-rigid case
- RM 10 Professional swivel stand
- Laser measurement reflector plate
- 4 1.5V LR6 (AA) batteries
- GCL 2-50G laser level
Ref. 0601066M00
