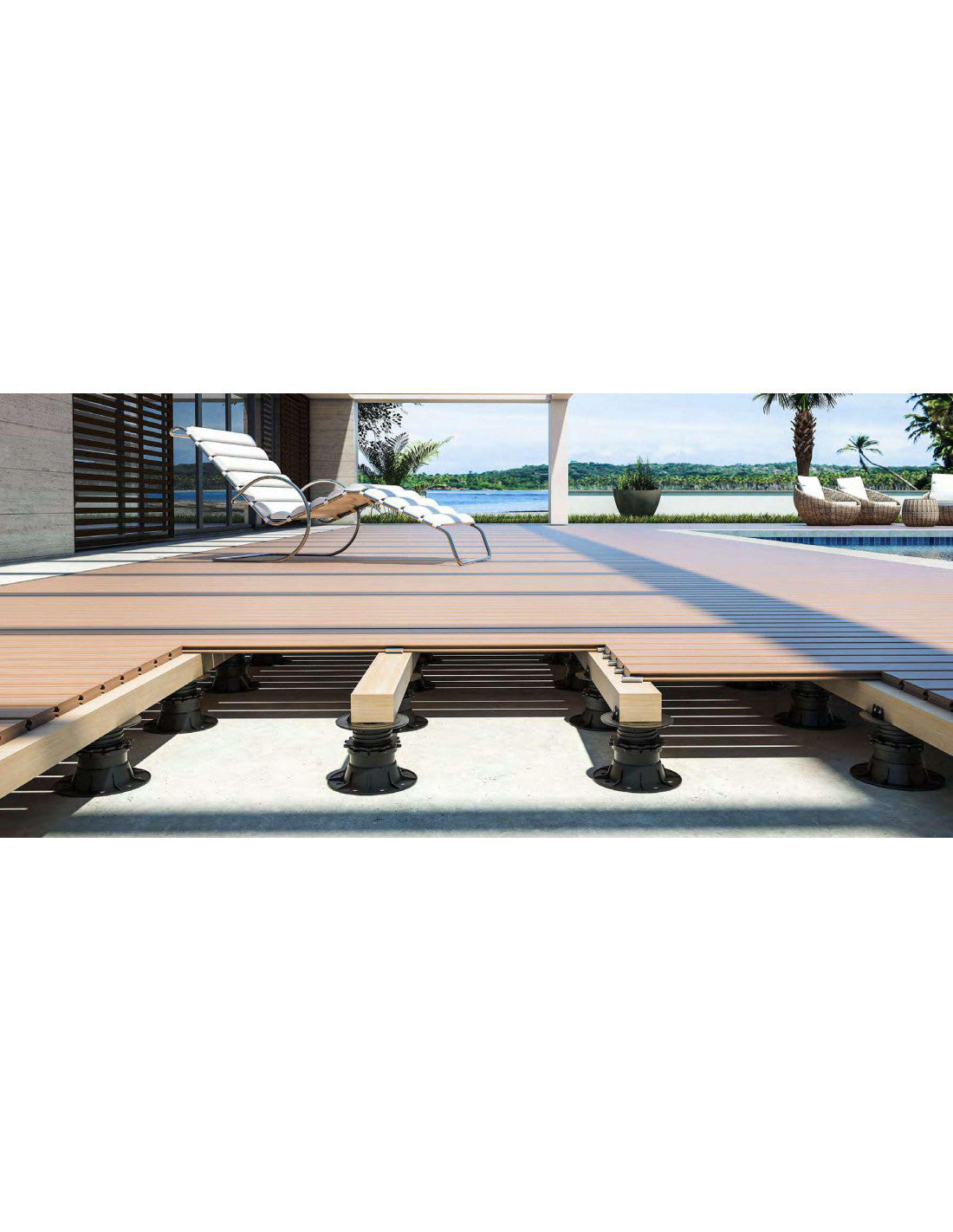

Peygran Plot Supports. Peygran supports for exteriors are a solution for projects in which we must use a floating, technical, raised or adjustable floor. They are the only alternative to traditional construction methods in this type of projects, to lighten weight and avoid architectural barriers. They allow high-quality finishes, saving work and facilitating subsequent maintenance of the facilities.
Resistance greater than 1,500 kg. Upper diameter of 130 mm and lower diameter of 160 mm. Recommended distance between plots: 35-40 mm.

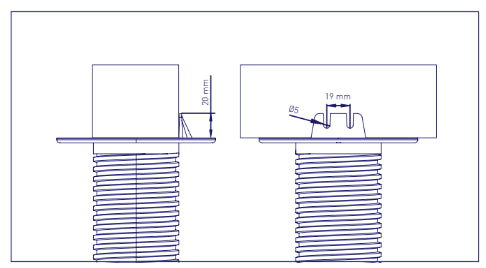

The head for wooden battens has a fin specially designed for screwing wooden battens. Made of polypropylene with mineral filler.
How many plots do you need?
PAVEMENT | PLOTS |
40X40 | 6.7 ud/m2 |
40X60 | 4.2 units/m2 |
40X90 | 3 units/m2 |
50X50 | 4.2 units/m2 |
60X60 | 3.3 units/m2 |
90X90 | 3.6 units/m2 |
*Approximate quantity by manufacturer
If you want it to be more precise you can calculate it yourself with the Peygran plot quantifier: https://www.peygran.com/soportes-pavimento-elevado/
CHARACTERISTICS

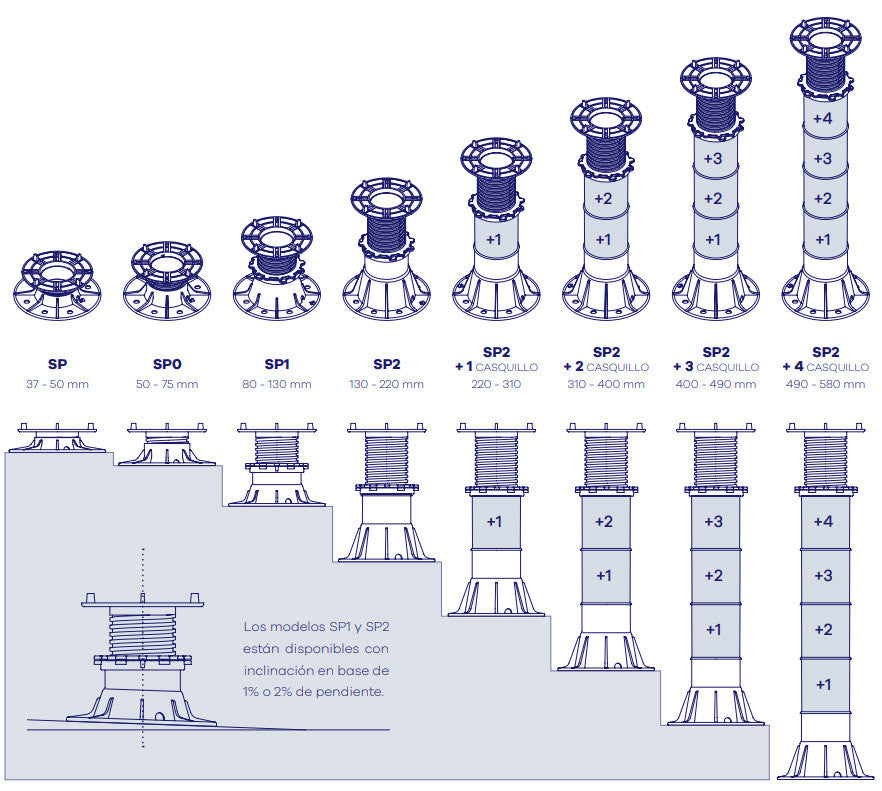

Available Measurements:
- SP: Floating floor support 37-50 mm
- SP0:Floating floor support 50-75 mm
- SP1: Floating floor support 80-130 mm
- SP2: Floating floor support 130-220 mm
- SP2+1: Floating floor support 220-310 mm
- SP2+2: Floating floor support 310-400 mm
- SP2+3: Floating floor support 400-490 mm
- SP2+4: Floating floor support 490-580 mm
